40材绿/黄

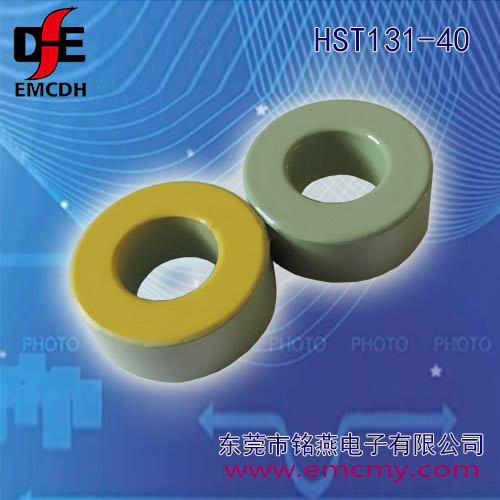

HST131-40

-40材是最便宜的材料,其特性与最通用的材料-26颇相似,
普遍应用于较大的尺寸
OD(in/mm)       ID(in/mm)        HT(in/mm)
1.300/33.0      0.640/16.3         0.437/11.1
Al: 93 nH ±10%
饱和磁通量(Bms):  13800 Gauss

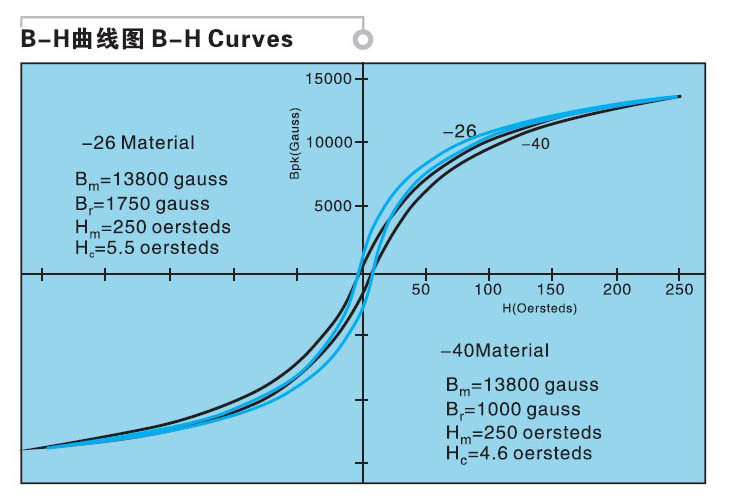

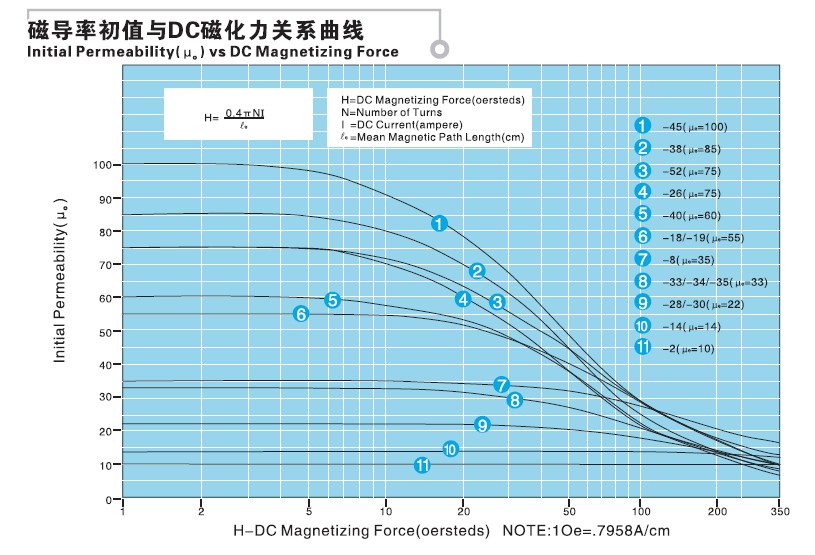

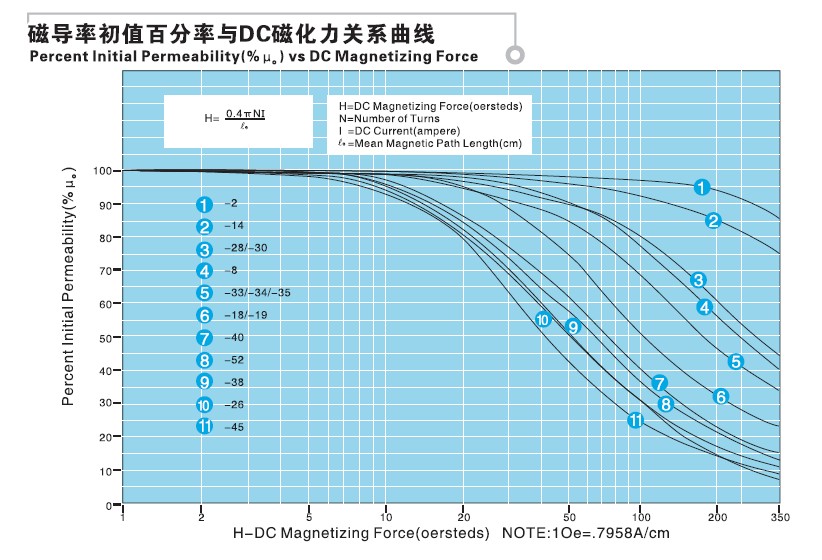

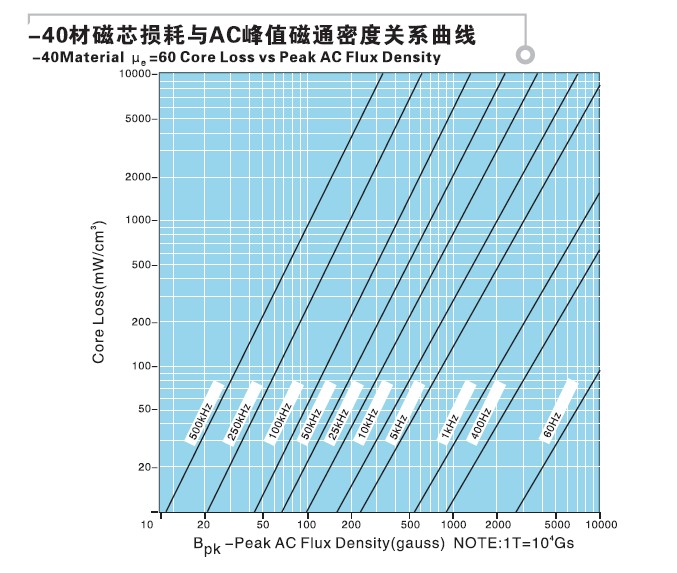

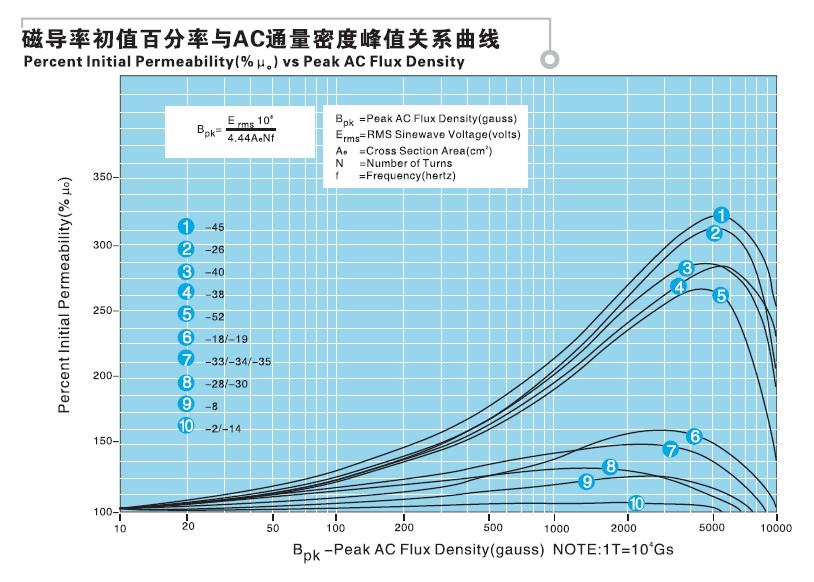

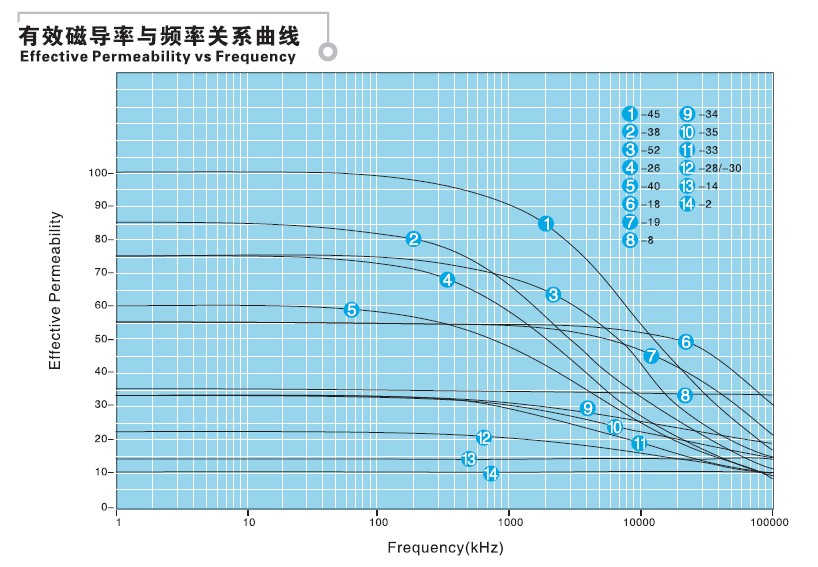

产品概述特性曲线相关资讯资料下载

-40材是最便宜的材料,其特性与最通用的材料-26颇相似,

普遍应用于较大的尺寸

OD(in/mm) ID(in/mm) HT(in/mm)

1.300/33.0 0.640/16.3 0.437/11.1

Al: 93 nH ±10%

饱和磁通量(Bms): 13800 Gauss

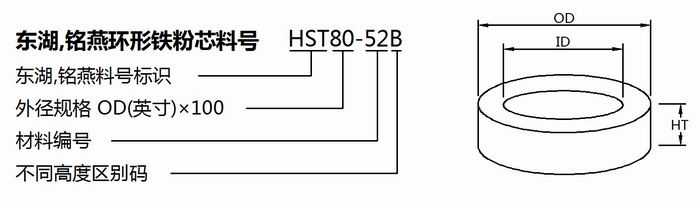

铁粉芯35材列表


铭燕料号	AL	OD	ID	Ht	le	Ae	V	微金属料号
Part No.	nH/N²	in/mm	in/mm	in/mm	cm	cm²	cm³	Part No.
Part No.	nH/N²	in/mm	in/mm	in/mm	cm	cm²	cm³	Part No.
HST16-40	12.5	.160/4.06	.078/1.98	.060/1.52	0.93	0.015	0.014	T16-40
HST20-40	16	.200/5.08	.088/2.24	.070/1.78	1.15	0.023	0.026	T20-40
HST25-40	20.5	.225/6.48	.120/3.05	.096/2.44	1.5	0.037	0.055	T25-40
HST30-40	28	.307/7.80	.151/3.84	.128/3.25	1.84	0.06	0.11	T30-40
HST37-40	24.5	.375/9.53	.205/5.21	.128/3.25	2.31	0.064	0.147	T37-40
HST38-40	41.5	.375/9.53	.175/4.45	.190/4.83	2.18	0.114	0.248	T38-40
HST44-40	31	.440/11.2	.229/5.82	.159/4.04	2.68	0.099	0.266	T44-40
HST50-40	29.5	.500/12.7	.303/7.70	.190/4.83	3.19	0.112	0.358	T50-40
HST50-40B	38.5	.500/12.7	.303/7.70	.250/6.35	3.19	0.148	0.471	T50-40B
HST50-40D	59	.500/12.7	.303/7.70	.375/9.53	3.19	0.223	0.711	T50-40D
HST51-40C	67	.500/12.7	.200/5.08	.250/6.35	2.79	0.223	0.622	T51-40C
HST60-40	41.5	.600/15.2	.336/8.53	.234/5.94	3.74	0.187	0.699	T60-40
HST68-40	35	.690/17.5	.370/9.40	.190/4.83	4.23	0.179	0.759	T68-40
HST68-40A	47	.690/17.5	.370/9.40	.250/6.35	4.23	0.242	1.03	T68-40A
HST68-40D	70	.690/17.5	.370/9.40	.375/9.53	4.23	0.358	1.52	T68-40D
HST72-40	71	.720/18.3	.280/7.11	.260/6.60	4.01	0.349	1.4	T72-40
HST80-40	39.5	.795/20.2	.495/12.6	.250/6.35	5.14	0.231	1.19	T80-40
HST80-40B	59	.795/20.2	.495/12.6	.375/9.53	5.14	0.347	1.78	T80-40B
HST80-40D	79	.795/20.2	.495/12.6	.500/12.7	5.14	0.453	2.33	T80-40D
HST90-40	57	.900/22.9	.550/14.0	0.375/9.53	5.78	0.395	2.28	T90-40
HST94-40	49	.942/23.9	560/14.2	.312/7.92	5.97	0.362	2.16	T94-40
HST106-40	81	1.060/26.9	.570/14.5	.437/11.1	6.49	0.659	0.659	T106-40
HST106-40A	58	1.060/26.9	.570/14.5	.312/7.92	6.49	0.461	3	T106-40A
HST106-40B	106	1.060/26.9	.570/14.5	.575/14.6	6.49	0.858	5.57	T106-40B
HST130-40	69	1.300/33.0	.780/19.8	.438/11.1	8.28	0.698	5.78	T130-40
HST130-40A	34	1.300/33.0	.780/19.8	.225/5.72	8.28	0.361	2.99	T130-40A
HST131-40	93	1.300/33.0	.640/16.3	.437/11.1	7.72	0.885	6.84	T131-40
HST132-40	83	1.300/33.0	.700/17.8	.437/11.1	7.96	0.805	6.41	T132-40
HST141-40	60	1.415/35.9	.880/22.4	.412/10.5	9.14	0.674	6.16	T141-40
HST150-40	78	1.510/38.4	.845/21.5	.437/11.1	9.38	0.887	8.31	T150-40
HST157-40	86	1.570/39.9	.950/24.1	.570/14.5	10.1	1.06	10.7	T157-40
HST175-40	90	1.750/44.5	1.070/27.2	.650/16.5	11.2	1.34	15	T175-40
HST184-40	143	1.840/46.7	.950/24.1	.710/18.0	11.2	1.88	21	T184-40
HST200-40	79	2.000/50.8	1.250/31.8	.550/14.0	13	1.27	16.5	T200-40
HST200-40B	142	2.000/50.8	1.250/31.8	1.000/25.4	13	2.32	30	T200-40B
HST201-40	194	2.000/50.8	.950/24.1	.875/22.2	11.8	2.81	33.2	T201-40
HST225-40	78	2.250/57.2	1.405/35.7	.550/14.0	14.6	1.42	20.7	T225-40
HST250-40	194	2.500/63.5	1.250/31.8	1.000/25.4	15	3.84	57.4	T250-40
HST260-40	140	2.670/67.9	1.600/40.7	1.000/25.4	17.1	3.45	59	T260-40
HST300-40	71	3.040/77.2	1.930/49.0	.500/12.7	19.8	1.68	33.4	T300-40
HST300-40D	142	3.040/77.2	1.930/49.0	1.000/25.4	19.8	3.38	67	T300-40D
HST350-40	137	3.500/89.0	2.140/54.4	1.000/25.4	22.5	4.39	98	T350-40
HST400-40	115	4.000/102	2.250/57.2	.650/16.5	25	3.46	86.4	T400-40
HST400-40D	230	4.000/102	2.250/57.2	1.300/33.0	25	6.85	171	T400-40D
HST520-40	119	5.200/132	3.080/78.2	.800/20.3	33.1	5.24	173	T520-40
HST520-40D	240	5.200/132	3.080/78.2	1.600/40.6	33.1	10.5	347	T520-40D
HST650-40	376	6.500/165	3.500/88.9	2.000/50.8	39.9	18.4	734	T650-40
